| Item |
SMART I |

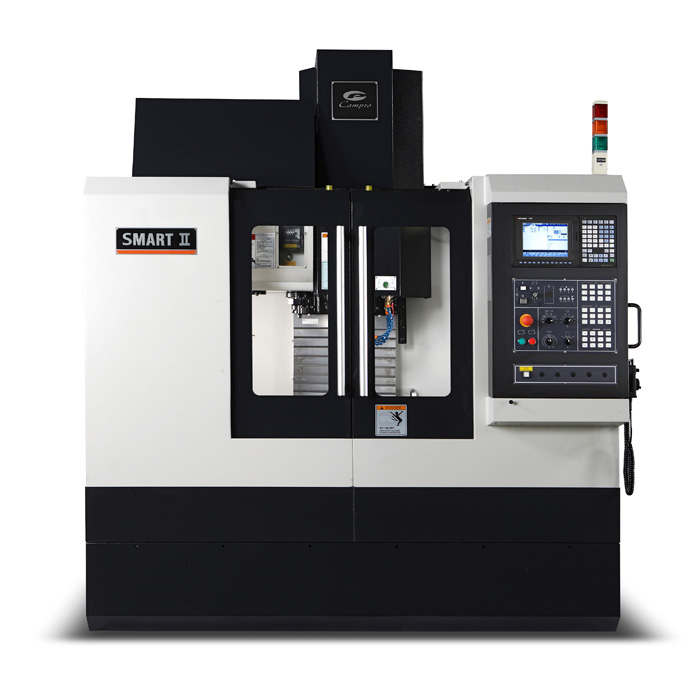

SMART II |
| lift |
|
|
| X-axis lift |
550 |
750 |
| Y axis lift |
430 |
430 |
| Z axis lift |
450 |
450 |
| distance between principal axis nasal tip and workbench |
100~550 |
100~550 |
| distance between principal axis center and upright rail |
485 |
485 |
| workbench |
|
|
| workbench area |
430X650 |
430X850 |
| workbench maximum loading capacity |
300 |
300 |
| T-shape groove size(WxGroovesxDistance) |
14x4x100 |
14x4x100 |
| principal axis |
|
|
| principal axis revolving speed(special selection) |
10000(I.D.D) |
| principal axis motor |
5.5/7.5(7.5/11) |
| principal axis hole taper |
7/24 TAPER NO.40 |
| automatic tool changing system |
|
|
| tool changing type(special selection) |
knife arm type |
| knife handle type |
BT-40 |
| broach rod type |
P-40T(45°) |
| tool changer capacity(special selection) |
20T |
| maximum tool diameter |
φ80 |
| maximum tool diameter |
φ130 |
| maximum tool length |
250 |
250 |
| maximum tool weight |
6 |
| tool changing time(tool to tool) |
2.5 |
| tool changing time(point to point) |
6 |
| changing speed |
random type |
| Feedrate |
|
|
| X/Y/Z axis fast feeding |
48/48/48 |
| cutting feeding |
|
| other specifications |
|
|
| Model |
6~8kgf/cm2 |
| Standard power source |
220V/60HZ |
| Power capacity |
15KVA |
| Max. machine height |
2635 |
| Floor plan (WxD) |
2240X2670 |
2240X2670 |
| Machine weight |
3000 |
3300 |
